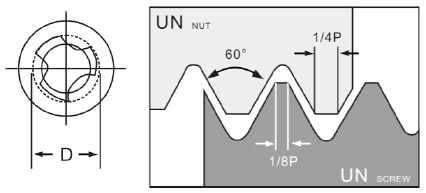

FFMUH 鎢鋼銑牙刀微小徑硬材質HRC62°-UN
(1)牙的長度-可到2D
| 型號 MODEL |
牙 (t) |
螺距 (Pitch) |
外徑 (D) |
有效長 (H) |
刃數 (F) |
柄徑 (d) |
全長 (AL) |
|
|---|---|---|---|---|---|---|---|---|
| 粗牙 (Coarse) |
細牙 (FINE) |
|||||||
| FFMUH7203 | 1-72UNF | 72 | 1.44 | 3.8 | 3 | 3 | 50 | |
| FFMUH6403 | 1-64UNC | 2-64UNF | 64 | 1.4 | 3.9 | 3 | 3 | 50 |
| FFMUH5603 | 2-56UNC | 3-56UNF | 56 | 1.66 | 4.6 | 3 | 3 | 50 |
| FFMUH4804 | 3-48UNC | 4-48UNF | 48 | 1.88 | 5.4 | 3 | 4 | 50 |
| FFMUH40041 | 4-40UNC | 40 | 2.12 | 6.2 | 3 | 4 | 50 | |
| FFMUH40042 | 5-40UNC | 6-40UNF | 40 | 2.46 | 7.1 | 3 | 4 | 50 |
| FFMUH3604 | 8-36UNF | 36 | 3.31 | 8.8 | 3 | 4 | 50 | |
| FFMUH32061 | 6-32UNC | 32 | 2.57 | 7.8 | 3 | 6 | 60 | |
| FFMUH32062 | 8-32UNC | 10-32UNF | 32 | 3.22 | 10.1 | 3 | 6 | 60 |
| FFMUH2806 | 1/4-28UNF | 28 | 5.2 | 14 | 3 | 6 | 60 | |
| FFMUH2406 | 10-24UNC | 24 | 3.55 | 10.4 | 3 | 6 | 60 | |
| FFMUH2408 | 5/16-24UNF | 24 | 6.65 | 16.7 | 3 | 8 | 60 | |
| FFMUH2006 | 1/4-20UNC | 7/16-20UNF | 20 | 4.85 | 13.7 | 3 | 6 | 60 |
| FFMUH2008 | 7/16-20UNF | 20 | 7.95 | 24 | 3 | 8 | 60 | |
| FFMUH1806 | 5/16-UNC | 18 | 5.95 | 16.5 | 3 | 6 | 60 | |
| FFMUH1604 | 3/8-UNC | 16 | 6.9 | 20 | 3 | 8 | 60 | |
| FFMUH1408 | 7/16-14UNC | 14 | 7.95 | 23.5 | 3 | 8 | 60 | |
(2)牙的長度-可到3D
| 型號 MODEL |
牙 (t) |
螺距 (Pitch) |
外徑 (D) |
有效長 (H) |
刃數 (F) |
柄徑 (d) |
全長 (AL) |
|
|---|---|---|---|---|---|---|---|---|
| 粗牙 (Coarse) |
細牙 (FINE) |
|||||||
| FFMUHL7203 | 1-72UNF | 72 | 1.44 | 5.8 | 3 | 3 | 50 | |
| FFMUHL4004 | 5-40UNC | 6-40UNF | 40 | 2.46 | 9.8 | 3 | 4 | 50 |
| FFMUHL3206 | 8-32UNC | 10-32UNF | 32 | 3.22 | 12.7 | 3 | 6 | 60 |
| FFMUHL2806 | 1/4-28UNF | 28 | 5.2 | 19.3 | 3 | 6 | 60 | |
| FFMUHL2408 | 5/16-24UNF | 24 | 6.65 | 24.2 | 3 | 8 | 60 | |
| FFMUHL2006 | 1/4-20UNC | 7/16-20UNF | 20 | 4.85 | 19.4 | 3 | 6 | 60 |
